SPESIFIKASI TOYOTA
SPESIFIKASI CALYA
|
Overall Panjang / Length |
4,070 |
|
Overall Lebar / Width |
1,655 |
|
Overall Tinggi / Height |
1,600 |
|
Jarak Poros Roda / Wheelbase |
2,525 |
|
Jarak Pijak / Tread (Depan/Front) |
630 |
|
Jarak Pijak / Tread (Belakang/Rear) |
915 |
|
Radius Putar / Turnisng Radius |
– |
|
Transmisi / Transmission Type |
5 Speed Manual |
|
Perbandingan Gigi / Gear Ratio 1st |
3.417 |
|
Perbandingan Gigi / Gear Ratio 2nd |
1.960 |
|
Perbandingan Gigi / Gear Ratio 3rd |
1.250 |
|
Perbandingan Gigi / Gear Ratio 4th |
0.917 |
|
Perbandingan Gigi / Gear Ratio 5th |
0.707 |
|
Perbandingan Gigi / Gear Ratio 6th |
– |
|
Perbandingan Gigi / Gear Ratio 7th |
– |
|
Perbandingan Gigi Mundur / Gear Ratio Reverse |
3.143 |
|
Perbandingan Gigi Akhir / Gear Ratio Final |
5.077 |
|
Suspensi Depan / Front Suspension |
MacPherson Strut with Coil Spring and Stabilizer |
|
Suspensi Belakang / Rear Suspension |
Semi Independent Torsion Axle Beam with Coil Spring |
|
Rem Depan / Front Brake |
Ventilated Disk |
|
Rem Belakang / Rear Brake |
Drum |
|

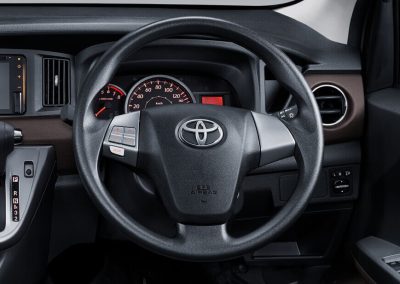

Steering Gear |
Rack & Pinion |
|

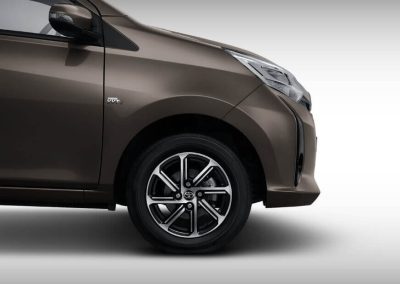

Ukuran Ban / Tires Size |
175/65R14 Two-Tone Machining Alloy |
|
Seri Mesin / Machine Serial |
3NR |
|
Tipe Mesin / Engine Type |
In-Line 4 Cylinder, 16 Valve, DOHC, Dual VVT-i |
|
Isi Silinder / Displacement (cc) |
1,197 |
|
Diameter X langkah / Bore X Stroke (Mm) |
72.5 x 72.5 |
|
Daya Maksimum / Maximum Output (Ps/Rpm) |
88 / 6,000 |
|
Torsi Maksimum / Maximum Torque (Kgm/Rpm) |
11 / 4,200 |
|
Sistem Pemasukan Bahan Bakar / Fuel System |
– |
|
Bahan Bakar / Fuel |
– |
|
Kapasitas Tangki / Fuel Capacity |
36 |
|
Steering (Power Steering) |
Electronic Power Steering (EPS) |
